Refractory Failure Troubleshooting

Introduction – Why Refractory Failure Matters

In high-temperature industries, refractory linings are essential. Steel plants, cement kilns, petrochemical reactors, glass furnaces, and non-ferrous smelters all depend on refractories to protect equipment from extreme heat, chemical attack, and mechanical wear. Without them, production would be impossible.

But refractories are not invincible. Even the highest-quality lining can fail prematurely if it is poorly installed, misapplied, or exposed to unexpected conditions. When refractory failure occurs, the consequences can be catastrophic:

• Unplanned shutdowns lasting days or weeks.
• Millions of dollars in lost production.
• Expensive emergency repairs and relining costs.
• Safety hazards for operators.
• Reduced product quality due to contamination or unstable thermal profiles.

That’s why refractory failure troubleshooting is so critical. Effective troubleshooting helps engineers detect problems early, identify root causes, and implement corrective actions before small issues escalate into large failures.

This guide offers a comprehensive, step-by-step resource for diagnosing refractory failures. We will cover:

• Types of refractory failure and their symptoms.
• Root causes and how to identify them.
• Troubleshooting techniques, including inspections and testing.
• Industry-specific failure patterns.
• Preventive maintenance and modern solutions.
• Case studies demonstrating how troubleshooting extends refractory life.

By the end, you’ll see how Avesta Consulting supports clients in turning refractory troubleshooting into a cost-saving, reliability-boosting strategy.

What Is Refractory Failure?

Refractory failure refers to the breakdown or deterioration of lining materials used in furnaces, kilns, reactors, or other high-temperature equipment. A failure means the refractory is no longer performing as intended—whether by losing strength, cracking, spalling, eroding, or collapsing.

Key indicators of refractory failure include:

• Visible cracks

  or falling debris from the lining.

• Hot spots

  on the furnace shell detected via thermography.

• Excessive heat loss

  reducing energy efficiency.

• Unusual deposits

  (glassy, powdery, or slag-like) on surfaces.

• Changes in furnace operation

  such as unstable temperature or pressure.

Importantly, refractory failure does not always occur suddenly. Many failures develop gradually, beginning with minor cracks or localized wear that, if not addressed, progress to large-scale breakdowns.

Types of Refractory Failures

To troubleshoot effectively, you must recognize the different failure modes. Each mode has distinct symptoms and causes.

1. Cracking and Spalling

• Symptoms: Cracks, popping noises during heating/cooling, or chunks detaching from the surface.
• Causes: Thermal shock from rapid heating or cooling, uneven temperature distribution, or inadequate expansion joints.
• Example: Rotary cement kilns often experience thermal shock when start-up and shutdown cycles are rushed.

2. Chemical Attack

• Symptoms: Erosion, softening, glassy layers, or color changes on refractory surfaces.
• Causes: Corrosive slags, alkali vapors, chlorine, sulfur dioxide, or acidic gases infiltrating the lining.
• Example: Alkali vapors in preheater cyclones attack standard alumina bricks, leading to premature failure.

3. Mechanical Wear and Abrasion

• Symptoms: Grooves, thinning walls, roughened surfaces, or localized erosion.
• Causes: High-velocity dust, abrasive raw materials, or charge impacts.
• Example: Fluid catalytic cracking (FCC) units suffer heavy abrasion due to catalyst circulation.

4. Installation-Related Failures

• Symptoms: Premature breakdown within months of installation.
• Causes: Improper mixing of castables, poor anchoring, incorrect curing/drying, or inadequate bricklaying practices.
• Example: In petrochemical heaters, steam spalling occurs when castables are dried too quickly.

5. Structural Collapse

• Symptoms: Complete loss of lining, metal shell exposure.
• Causes: Weak anchoring systems, shell deformation, or improper design.
• Example: In large furnaces, anchors can detach under load, causing the lining to fall.

Step-by-Step Troubleshooting Process

A systematic approach is essential to find the true root cause of refractory failure.

Step 1: Gather Operating Data

• Record furnace temperature and heating/cooling cycles.
• Collect information on pressure, gas flows, and atmosphere composition.
• Analyze raw materials and slag/fuel chemistry.
• Review past maintenance and repair records.

Step 2: Visual Inspection

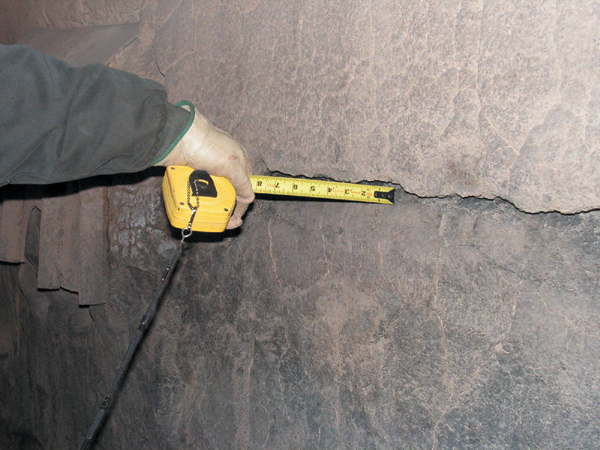

• Look for cracks, spalling, or discolored surfaces.
• Identify erosion patterns (linear grooves, circular wear zones).
• Check anchors, joints, and corners for weaknesses.

Step 3: Non-Destructive Testing (NDT)

• Infrared Thermography: Reveals hot spots and insulation breakdown.
• Ultrasonic Testing: Determines remaining lining thickness.
• Acoustic Emission Monitoring: Detects crack propagation in real time.
• Laser Scanning: Creates 3D maps of wear patterns.

Step 4: Laboratory Analysis

• Chemical analysis of samples reveals slag or alkali penetration.
• Microscopic examination shows mineral transformations.
• Porosity and density tests determine permeability and strength.

Step 5: Root Cause Analysis

• Correlate operating conditions with observed damage.
• Example correlations:
  • Rapid cooling + cracking = Thermal shock.
  • Alkali presence + softening = Chemical attack.
  • High velocity + grooved erosion = Mechanical wear.

Step 6: Implement Corrective Action

• Modify operating procedures (slower heating/cooling rates).
• Upgrade refractory grade (e.g., high-alumina bricks for alkali resistance).
• Redesign anchoring or expansion joints.
• Apply protective coatings.
• Retrain staff on proper installation.

Root Causes of Refractory Failure

Even durable refractories fail if certain root causes are ignored.

1. Design Errors

   • Using the wrong material for temperature/chemistry.
   • Ignoring thermal expansion allowances.

2. Installation Issues

   • Poor ramming, gunning, or bricklaying.
   • Incomplete curing or improper drying schedules.

3. Operational Stresses

   • Overheating beyond design temperature.
   • Frequent cycling instead of stable operation.
   • Uncontrolled dust or raw material chemistry.

4. Maintenance Neglect

   • Delaying hot spot repairs.
   • Overlooking early cracks or deposits.

Industry-Specific Refractory Troubleshooting

Different industries face unique refractory challenges.

Cement Industry

• Failures: Alkali attack in cyclones, thermal shock in kilns.
• Troubleshooting: Use alkali-resistant bricks, monitor coating build-up, maintain shell ovality.

Steel Industry

• Failures: Slag erosion in ladles, fatigue in tundishes.
• Troubleshooting: Control slag basicity, monitor ladle lining thickness with lasers.

Glass Industry

• Failures: Silica brick corrosion, blistering.
• Troubleshooting: Balance redox conditions, prevent alkali vapor attack.

Petrochemical Industry

• Failures: Abrasion in FCC units, sulfur corrosion in heaters.
• Troubleshooting: Upgrade to abrasion-resistant castables, apply anti-sulfur coatings.

Preventive Maintenance Strategies

Troubleshooting solves immediate issues, but prevention ensures longevity.

• Material Selection: Match refractory to operating environment.
• Proper Installation: Train crews, supervise curing and drying.
• Protective Coatings: Shield against alkali or sulfur.
• Monitoring: Schedule regular thermography and ultrasonic tests.
• Predictive Maintenance: Use data to replace linings before catastrophic failure.
• Documentation: Keep detailed failure logs for trend analysis.

Case Studies in Refractory Troubleshooting

Case Study 1: Rotary Kiln Spalling (Cement Plant)

A cement plant experienced brick spalling every six months. Inspection revealed cracks aligning with kiln ovality. Root cause: uneven shell deformation combined with rapid heating cycles.

• Solution: Flexible lining with expansion joints, modified start-up procedures.
• Result: Refractory life extended from 6 months to 24 months.

Case Study 2: Slag Attack in Steel Ladles

A steel manufacturer suffered slag erosion in ladles, leading to frequent relining.

• Solution: Introduced MgO-C bricks and optimized slag chemistry.
• Result: Lining life doubled, reducing downtime and costs.

Case Study 3: Abrasion in FCC Unit (Petrochemical Plant)

A refinery’s FCC unit showed severe abrasion from catalyst circulation.

• Solution: Installed abrasion-resistant castables and adjusted flow dynamics.
• Result: Maintenance intervals extended from 8 months to 18 months.

Emerging Technologies in Troubleshooting

The future of refractory maintenance lies in smart technologies:

• AI & Predictive Analytics: Machine learning models forecast failures based on temperature, chemistry, and operational data.
• IoT Sensors in Refractories: Embedded sensors monitor temperature, stress, and wear in real time.
• Drone Inspections: Drones equipped with thermal cameras safely inspect tall furnaces and chimneys.
• Sustainable Refractories: Development of eco-friendly, longer-lasting refractories reduces environmental impact and lifecycle costs.

How Avesta Consulting Supports Clients

Avesta Consulting offers tailored services in refractory troubleshooting, including:

• On-site inspections and thermography.
• Laboratory failure analysis.
• Customized refractory material selection and lining design.
• Installation supervision and workforce training.
• Predictive maintenance programs.

Our consulting team ensures that clients maximize refractory life, minimize downtime, and reduce operating costs.

Conclusion

Refractory failures are among the most costly and disruptive problems in high-temperature industries. But with the right troubleshooting methods, their impact can be minimized.

By systematically analyzing symptoms, identifying root causes, and applying preventive measures, industries can extend refractory service life and improve overall plant reliability. With advancements in smart monitoring and predictive maintenance, the future of refractory troubleshooting will be even more proactive.

At Avesta Consulting, we combine engineering expertise, field experience, and advanced tools to deliver reliable refractory solutions across cement, steel, petrochemical, and glass industries. When your refractory lining is at risk, our troubleshooting ensures your operations stay strong.
