Steel Structure Design Software: How to Choose the Right Tool

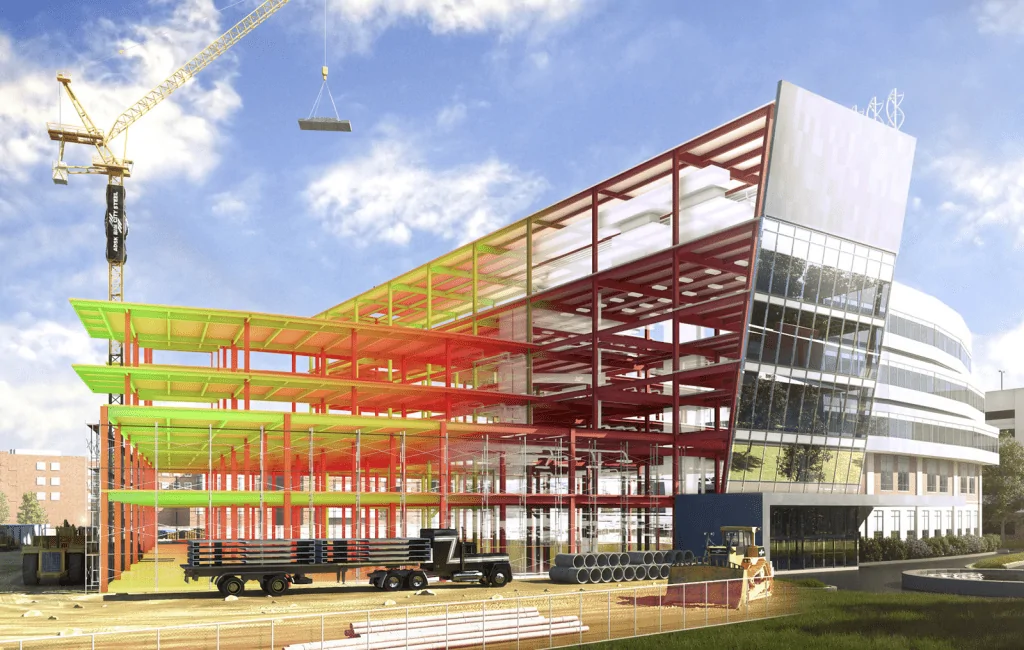

Building information model of a multi-storey steel structure under construction

Steel Structure Design Software: A Practical Comparison

The right software for steel structure design depends on four things: the type of structure, the analysis it needs, the code it must satisfy and the deliverables the project requires. Structural analysis and design software calculates forces and checks members, and sometimes connections, against a design standard. Detailing software builds the fabrication-level model that produces shop drawings and fabrication data. Quantity takeoff extracts material quantities from a model. These are different jobs, and a package that does one well does not necessarily do the others. This guide covers analysis and design, using Australian practice (AS 4100) as the reference point.

What Does Steel Structure Design Software Need to Do?

Before comparing products, define the tasks the software must perform for your project. Not every package supports every task, and support often depends on the version, the add-ons licensed and the design code selected.

  • Modelling. Members, plates and supports must represent how the structure actually behaves. For an industrial frame this includes bracing, base fixity and any release conditions.
  • Load cases and combinations. The software should apply the combinations your loading standard requires. Some packages generate combinations automatically for a given standard; others expect you to define them. Check which applies to the standard you use.
  • Member checks. Section capacity, flexural-torsional (lateral) buckling, compression buckling and combined actions, each against a named code and edition.
  • Stability. Whether second-order effects and imperfections are handled in the analysis, by amplification factors in the design check, or left to the engineer.
  • Deliverables. Calculation reports an independent reviewer can trace, member schedules, and an exchange route to the detailer.

The code edition matters. AS 4100:2020 is the current edition on the Standards Australia and SAI Global listings, although one listing shows it as pending revision, so confirm the position when you start a project. Several products still offer the 1998 edition alongside it.

Steel Analysis, Connection Design and Detailing: Different Jobs

Three categories cover most of the confusion in this market.

1. Global analysis and member design. The software builds an analysis model, applies loads, calculates member forces and displacements, and checks members against a standard. SAP2000, ETABS, STAAD.Pro, RFEM/RSTAB, Robot and Tekla Structural Designer sit here.

2. Connection design. A separate calculation that takes the forces at a joint and checks bolts, welds, plates and base plates. Some global packages include connection modules for particular codes; dedicated tools such as IDEA StatiCa Connection concentrate on this task.

3. Detailing and fabrication. A constructible 3D model with every plate, bolt and weld, producing shop drawings, material lists and fabrication data. Tekla Structures and Autodesk Advance Steel are detailing tools. They are not substitutes for an analysis package.

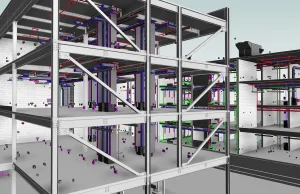

Steel-structure engineering workflow from analysis to fabrication documentation.

Tools in the second and third categories are companions to the first, not alternatives. For the wider picture across concrete, timber and mixed-material projects, see our broader structural engineering software guide.

Steel Structure Software Comparison

The table covers global analysis and design tools. Entries reflect vendor documentation read in November 2026. Support for a code does not mean every clause or limit state is covered, and it does not mean the software meets every project requirement. Verify the edition and your licensed modules before committing.

Product Main role Suitable project type Analysis / design scope Connection / detailing relationship Key limitations Source / version checked
SAP2000 (CSI) General-purpose analysis and design General structures, including industrial frames AS 4100:2020 steel frame design added in v25.0.0; v25.0.0 also added distributed hinge plasticity Not established in sources reviewed; treat connection design as separate Confirm which AS 4100 edition your installed version uses CSI release notes, v25.0.0 to v26.1.0
ETABS (CSI) Analysis and design, building focus Multi-storey and building structures AS 4100:2020 steel frame design added in v21.0.0 Steel connection design noted for AISC 360-22 in v22.0.0; AS 4100 connection design not established Building-oriented; check suitability for non-building industrial structures CSI release notes, v21.0.0, v22.0.0, v23.3.0
STAAD.Pro (Bentley) General-purpose analysis and design Buildings and industrial structures AS 4100:2020 and 1998 (Amdt 1) steel design Bentley documentation says STAAD.Pro and Bentley Connection Design support AS 4100 connection design; connections may govern member sizes Help documents list limit states not covered by its AS 4100 design, including stability and serviceability; these remain the engineer’s responsibility STAAD.Pro Help v2024; limit-state table from v21
RFEM 6 / RSTAB 9 (Dlubal) Analysis (RFEM: members and surfaces; RSTAB: frames and trusses) with design add-ons Frames, trusses, structures with plates and surfaces Steel Design add-on performs ULS and SLS member checks to AS 4100; combinations to AS/NZS 1170.0 can be generated automatically Not established in sources reviewed Design needs the Steel Design add-on; the AS 4100 edition is not stated on the Dlubal page; second-order analysis is configurable per design situation Dlubal AS standards page; RFEM 6 Steel Design manual (May 2025)
Autodesk Robot Structural Analysis Professional Analysis and design, strong Revit link Buildings, BIM-coordinated projects Steel member codes in the 2027 help include AS 4100:2020 Amd1:2021 Steel connection codes in Autodesk’s 2023 code list are Eurocode, French, Polish and Swedish; AS 4100 is not listed AS 4100 connection design not found in Autodesk lists reviewed Autodesk help 2027; code list 2023
Tekla Structural Designer (Trimble) Analysis and design for buildings Steel, concrete and composite buildings Steel design to AS 4100; loading to AS/NZS 1170.0 and AS 1170.1 Links to Tekla Structures for modelling and detailing; a different product with a different job Building-focused; not a detailing tool Tekla support documentation, 2024 to 2026

Dedicated connection and companion tools

Product Main role Relationship to the analysis model Key limitations Source / version checked
IDEA StatiCa Connection Connection design and code check Imports joint geometry and load effects from FEA and BIM tools through plugins Confirm the Australian code coverage for your joint types and version Release notes, Steel 9.1 (Australian code added)
Bentley Connection Design Connection design Referenced by STAAD.Pro documentation for AS 4100 Product details not independently reviewed here STAAD.Pro Help v2024
Tekla Structures Constructible 3D model, drawings, fabrication data Receives data from Tekla Structural Designer and other tools; not an analysis package Not interchangeable with Tekla Structural Designer Tekla support article

Three points the table cannot show. First, the same vendor can offer different products for different jobs: Tekla Structural Designer analyses and designs, while Tekla Structures models for construction. Second, a Dlubal or CSI listing of a code is a starting point; read the design manual for the edition, the clauses implemented and the limits. Third, release notes record corrections. CSI’s ETABS v23.1.1 notes, for example, record a resolved incident in AISC 360-22 steel design where axial forces were not considered in v23.1.0. That case concerned a different code, but it shows why you should record the software version in every calculation and read the release notes between versions.

How to Choose for an Industrial Steel Frame

Industrial frames raise questions that general building guidance often skips. Work through these before shortlisting.

Geometry and supports. Portal frames, crane runways, platforms and pipe racks are modelled differently. Check that the software can represent tapered members, releases, eccentric bracing and realistic base fixity, rather than forcing idealised pins or fixed bases.

Load cases. List the cases the structure actually carries: dead, live, wind, equipment, and crane or process loads where relevant. Confirm that the software handles your combination rules, and whether it builds them for you.

Stability and second-order effects. Slender frames can be sensitive to second-order effects. Find out whether the package runs a second-order analysis, how it treats imperfections, and which of these remain the user’s responsibility. STAAD.Pro’s documentation, for instance, lists stability among the limit states its AS 4100 design does not consider, while Dlubal documents a configurable second-order analysis. Neither fact settles which is better for your project; they show why the question needs asking.

Nonlinear analysis. If the design relies on nonlinear behaviour, such as plastic hinges, check that the feature exists and that your design standard permits that approach.

Connections. Decide early whether connections are designed in the global package, in a dedicated tool or by the fabricator. Connection forces can govern member sizes, so leaving them until late can force rework.

Traceable reporting. A reviewer needs input, load combinations, governing checks and clause references. Test the report output on a sample model before purchase.

No package should be assumed to meet every Australian requirement for a given project. Confirm the code edition, the clauses implemented and the version against the design manual.

Our engineering design services apply analysis at each stage of a project, from concept through to detailed engineering. For an industrial example, see our pipe rack and skid frame structural assessment for the Sonker Basin 3 Liquid Bulk Terminal, where finite element analysis was used to confirm member sizing and connection details to EN 1993-1-1.

Selecting Tools for Connections, Detailing and Fabrication

Keep this decision separate from your choice of global analysis software. A dedicated connection tool such as IDEA StatiCa Connection takes joint forces from the analysis model and checks the joint. A detailing tool such as Tekla Structures produces the constructible model and fabrication documents. Handoffs vary by vendor and version, and some require manual transfer or checking. Ask the fabricator or detailer what they need to receive, and in what format, before locking in the analysis package.

A Practical Selection Checklist

Answer these before shortlisting. Each answer rules some options in or out.

  1. What is the structure: building, portal frame, platform, pipe rack, bridge or mixed? This affects which package is a natural fit.
  2. Which standard and edition govern, and does the package implement that edition?
  3. Is a second-order analysis required, and does the package perform it or leave it to you?
  4. Do you need nonlinear or dynamic analysis, and are those modules licensed?
  5. Who designs connections: the global package, a dedicated tool or the fabricator?
  6. What must the detailer or fabricator receive, and in which format?
  7. Does the package generate load combinations for your loading standard?
  8. Can the reports show governing checks with clause references?
  9. Does your team have the skills to verify results, or will an independent check be needed?
  10. Do licensing and support suit your project timeline?

There is no universally best tool. The right choice follows from your answers.

When Independent Engineering Review Is Needed

Software output is not a design verdict. A model can be wrong in ways the software will not flag: a missing release, incorrect support stiffness, a load case left out or a code option set incorrectly. Engineering judgement and model verification stay with the engineer, whichever package you use.

Independent review is worth considering for industrial structures with unusual loading or geometry, stability-sensitive frames, models inherited from another party, and designs where connection forces drive member sizes. If you have an industrial steel design or verification problem, you are welcome to discuss your requirements with our team through our design verification service.

Frequently Asked Questions

Which software is used for steel structure design? Common analysis and design packages include SAP2000, ETABS, STAAD.Pro, RFEM/RSTAB, Robot and Tekla Structural Designer. The right one depends on structure type, code and deliverables.

How is steel analysis different from detailing? Analysis calculates forces and checks members against a standard. Detailing builds the fabrication model and produces shop drawings and fabrication data.

Can one tool cover analysis and fabrication? Vendors may link products across both, but they are different jobs. Tekla Structural Designer and Tekla Structures, for example, are separate products connected by a workflow.

Working on an industrial steel design or verification problem? Contact our team to discuss your requirements, or read more about our design verification service.
